Valkyrie C2
Resilient, configurable communications that keep you
connected and in control.

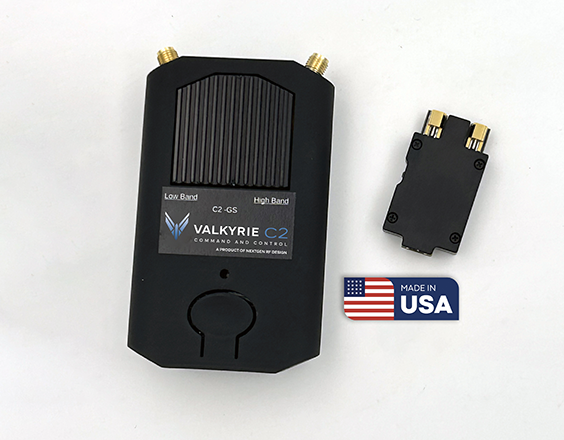

VALKYRIE C2 is a compact, dual-band communications system
purpose-built for FPV and small UAS platforms, offering secure,
redundant and configurable control across ISM and tactical
frequency ranges.
Dependable Control in Denied Environments
Engineered for mission-critical operations, it delivers robust
command and telemetry performance with advanced anti-jam
capabilities and automatic rebinding. This ensures link integrity
even in contested RF environments.
Engineered for Mission Success
With its dual-transceiver architecture, tactical mode support,
and RF redundancy, VALKYRIE C2 is a lightweight, low-cost solution that empowers DoD drone missions without compromising on size, weight or budget.

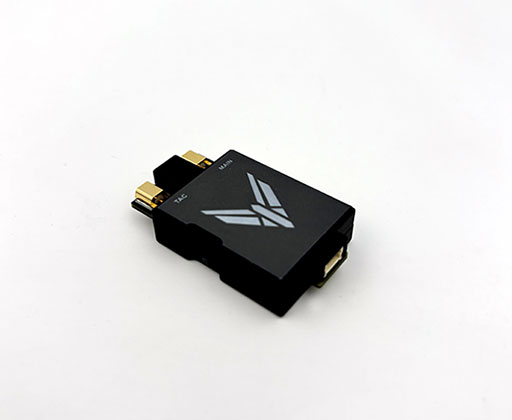

Valkyrie C2 Air Unit
- Size: 43mm x 23mm x 8.2mm
- RF Connectors: MMCX Female x2
- Power Input: Dual Type
- Solder Pads
- JST SH/SR Male Connector
Radio 1 (ISM Band)
- 863-870 MHz (EU) / 902-928 MHz (US)
- Up to +22 dBm Output Power
- Frequency Hopping Spread Spectrum
- FCC ISM Compliance Mode
- Tactical Mode
Radio 2 (Tactical Band)
- 400 MHz
- Up to +22 dBM Output Power
- Static Frequency & Frequency Hopping
- Tactical Mode
Input Voltage: 2S-5S LiPo
Pairing Button
Sales
Email: sales@nextgenrf.com
Phone: 507.514.6245
Support
Email: support@nextgenrf.com
Phone: 507.514.6246
Request A Quote

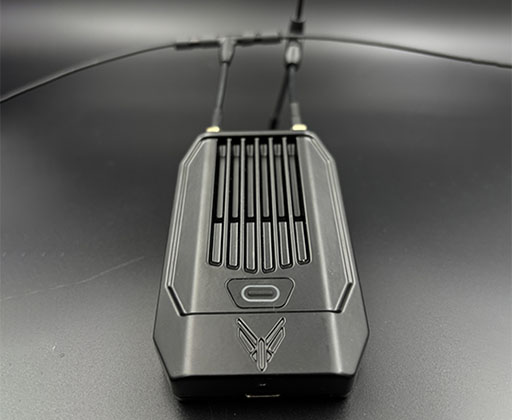

Valkyrie C2 Ground Unit
- Size: 89mm x 55mm x 30.5mm (JR Box)
- RF Connectors: SMA Female x2
- Power Input: Dual Type
- Solder Pads
- JST SH/SR Male Connector
Dual Receiver / Transmitter
Radio 1 (ISM Band)
- 863-870 MHz (EU) / 902-928 MHz (US)
- Up to +34 dBm Output Power
- Frequency Hopping Spread Spectrum
- FCC ISM Compliance Mode
- Tactical Mode
Radio 2 (Tactical Band)
- 400 MHz
- Up to +36 dBM Output Power
- Static Frequency & Frequency Hopping
- Tactical Mode
SBUS, CRSF
Input Voltage: 2S-5S LiPo (for high Tx power)
USB-C Configuration Port
Sales
Email: sales@nextgenrf.com
Phone: 507.514.6245
Support
Email: support@nextgenrf.com
Phone: 507.514.6246
Request A Quote
Valkyrie C2 Air Unit
- Size: 43mm x 23mm x 8.2mm
- RF Connectors: MMCX Female x2
- Power Input: Dual Type
- Solder Pads
- JST SH/SR Male Connector
Radio 1 (ISM Band)
- 863-870 MHz (EU) / 902-928 MHz (US)
- Up to +22 dBm Output Power
- Frequency Hopping Spread Spectrum
- FCC ISM Compliance Mode
- Tactical Mode
Radio 2 (Tactical Band)
- 400 MHz
- Up to +22 dBM Output Power
- Static Frequency & Frequency Hopping
- Tactical Mode
Input Voltage: 2S-5S LiPo
Pairing Button
Sales
Email: sales@nextgenrf.com
Phone: 507.514.6245
Support
Email: support@nextgenrf.com
Phone: 507.514.6246
Request A Quote
Valkyrie C2 Ground Unit
- Size: 89mm x 55mm x 30.5mm (JR Box)
- RF Connectors: SMA Female x2
- Power Input: Dual Type
- Solder Pads
- JST SH/SR Male Connector
Dual Receiver / Transmitter
Radio 1 (ISM Band)
- 863-870 MHz (EU) / 902-928 MHz (US)
- Up to +34 dBm Output Power
- Frequency Hopping Spread Spectrum
- FCC ISM Compliance Mode
- Tactical Mode
Radio 2 (Tactical Band)
- 400 MHz
- Up to +36 dBM Output Power
- Static Frequency & Frequency Hopping
- Tactical Mode
SBUS, CRSF
Input Voltage: 2S-5S LiPo (for high Tx power)
USB-C Configuration Port
Sales
Email: sales@nextgenrf.com
Phone: 507.514.6245
Support
Email: support@nextgenrf.com
Phone: 507.514.6246
Request A Quote
